Wind Turbines Generator

Regular price $269.30

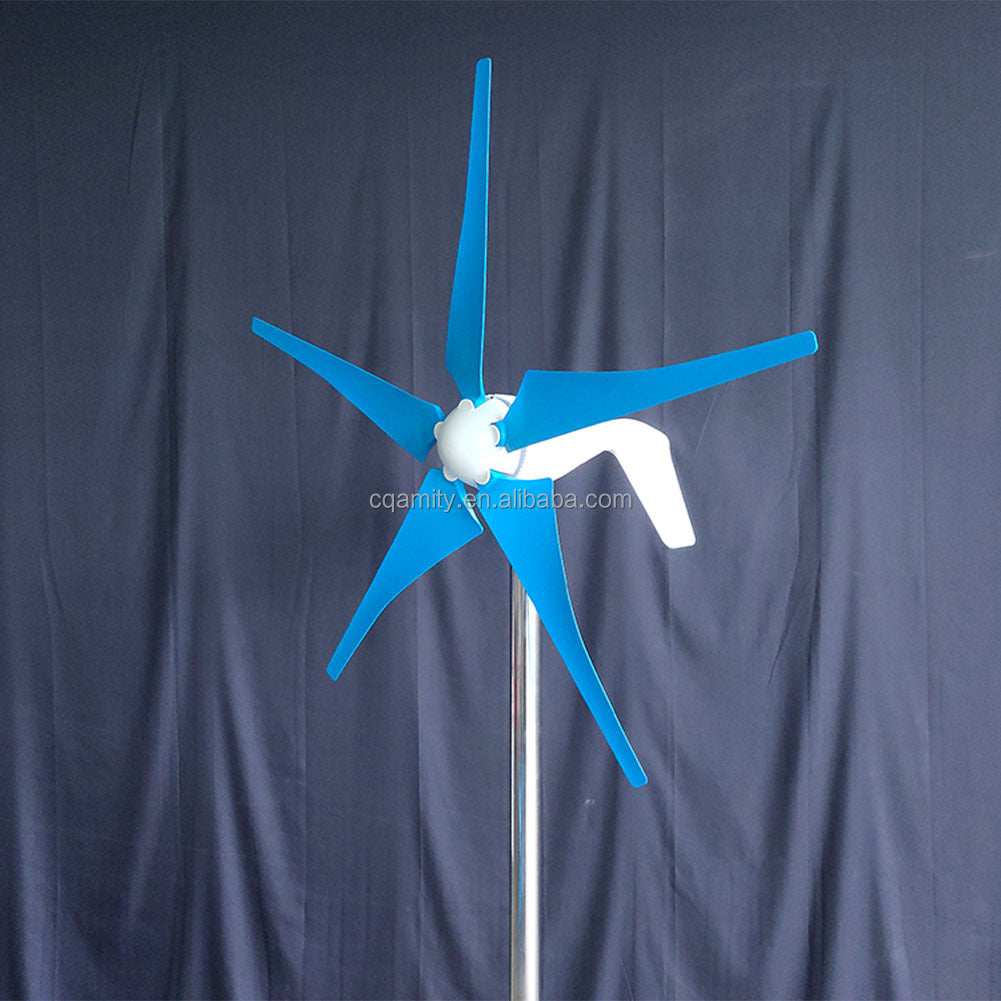

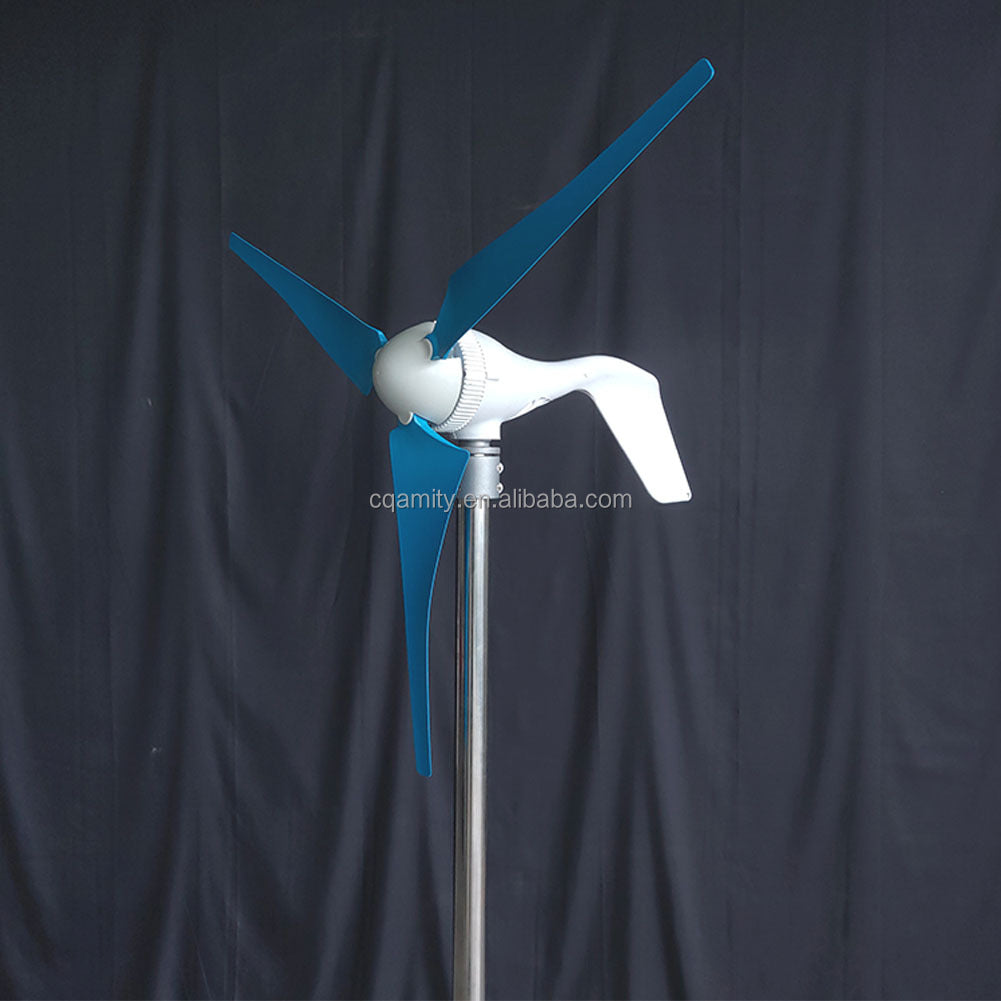

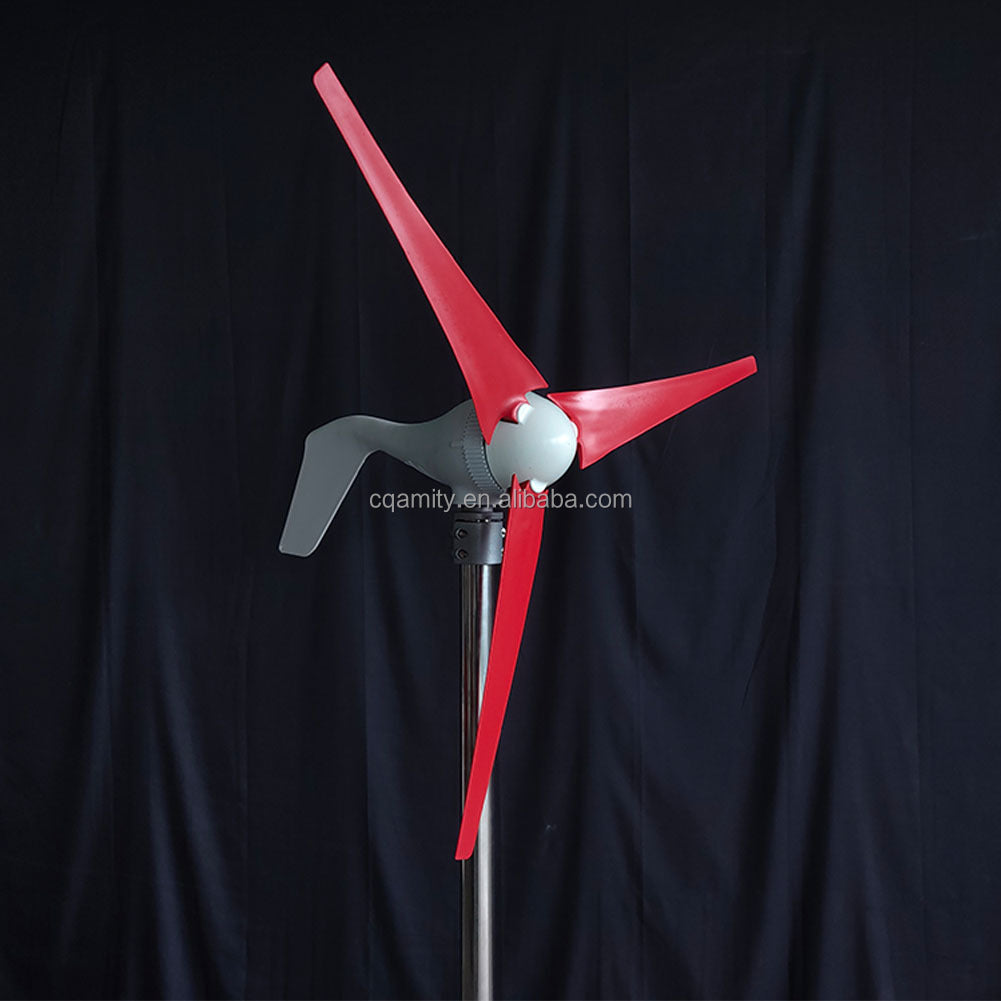

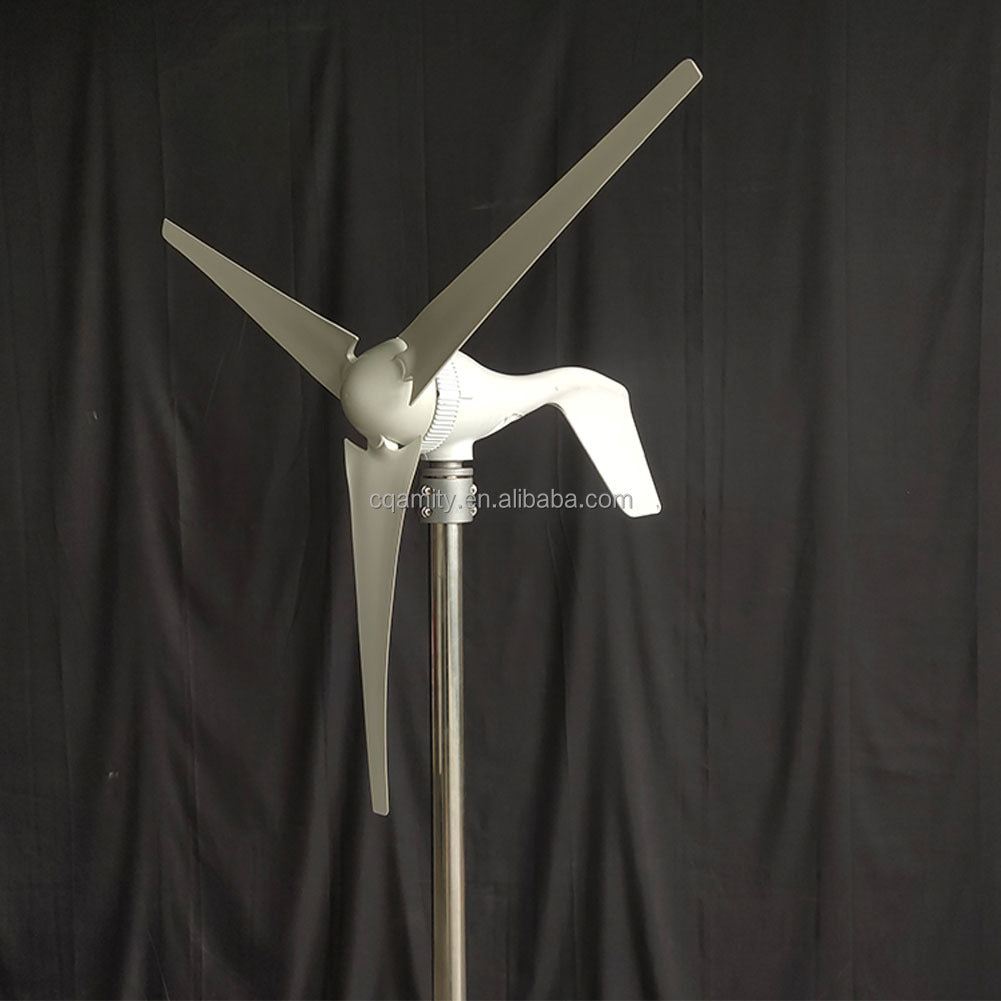

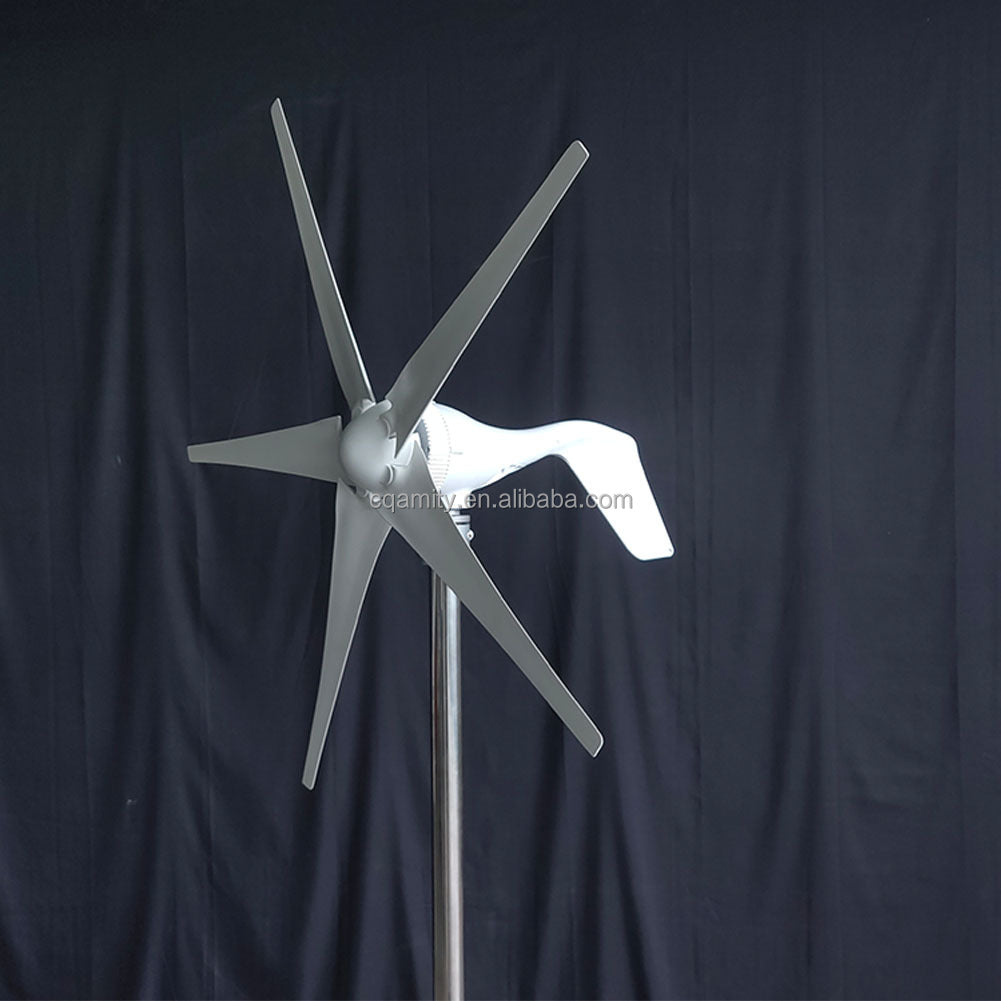

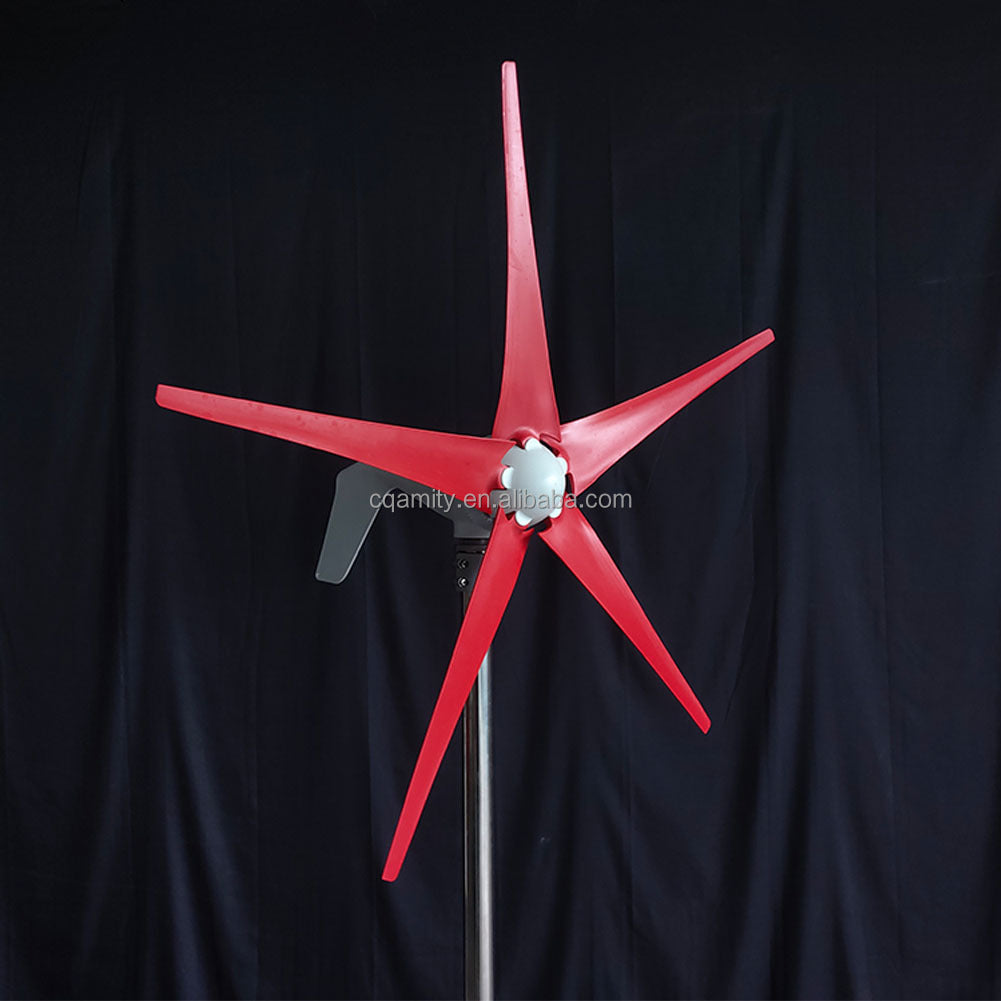

China Factory 100W 12V/24V Wind Turbine 3/5 Blades Controller Small Wind Turbine

Product Features
1.Low start up wind speed, compact, light,beautiful and with lttle vibration.
2.Easy installation, flange connection.
3. Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Patented permanent magnet ac generator with special stator(maglev generator), effectively reduce torque, make only 1/3 torque of ordinary generator, well match the wind wheel and generator, and ensure the performance of whole system.
5.Adopting MPPT intelligent micro controller effectively adjusts current and voltage.

Model NE-100S2 NE-200S2 NE-300S2 NE-400S2
Rated power 100w 200w 30ow 400w
Maximum power 130W 220w 310W 410W
Rated voltage 12V/24v 12V/24v 12V/24v 24v
Start up wind speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated wind speed 10m/s 11.5m/s 13m/s 13m/s
Survival wind speed 55m/s 55m/Ss 50m/s 50m/s
Top net weight 5kg 5.2kg 5.6kg 5.8kg
Wheel diameter 1.2m 1.3m 1.35m 1.4m
Blades number 3/5
Blades material Nylon fiber
Generator Three phase permanent magnet ac generator
Control system Electromagnet
Speed regulation Automatically adjust windward
Working temperature -40℃~80℃
